SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

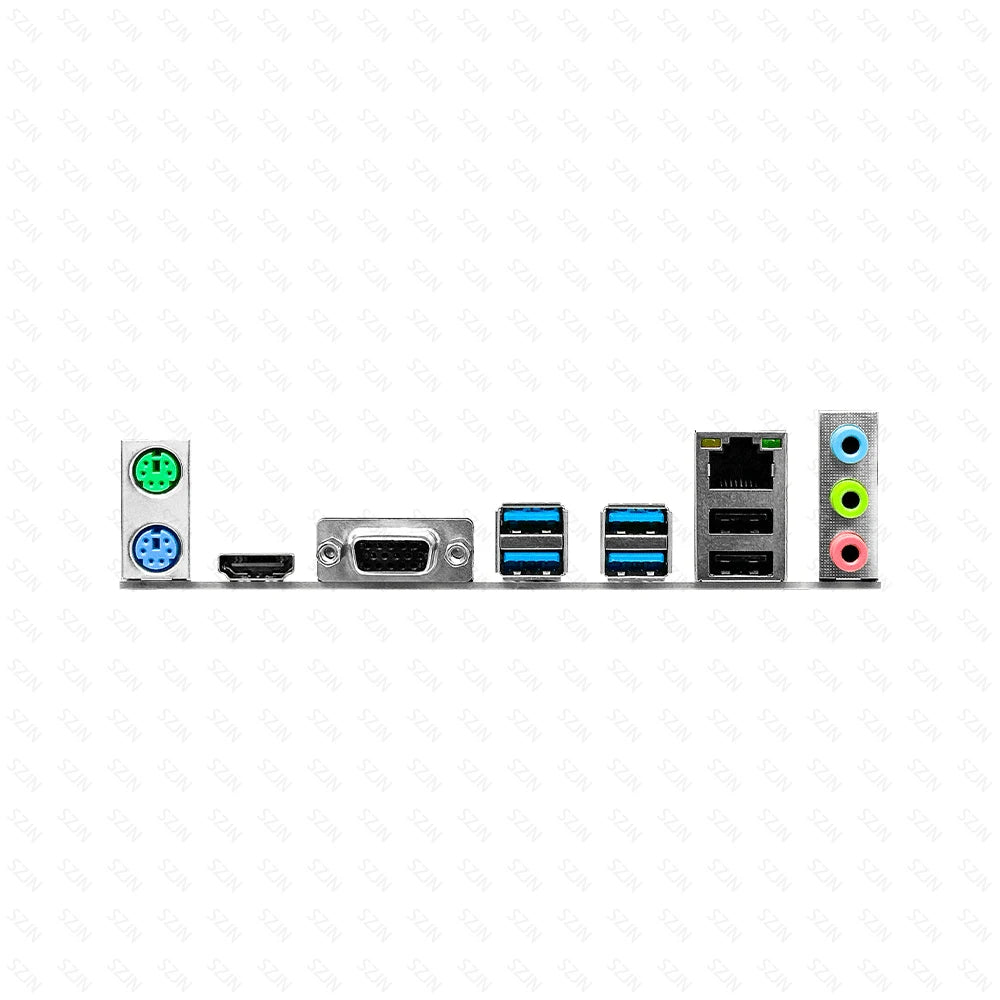

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: SZJN

Certification: None

Chipset: AMD B350

Chipset Manufacturer: AMD

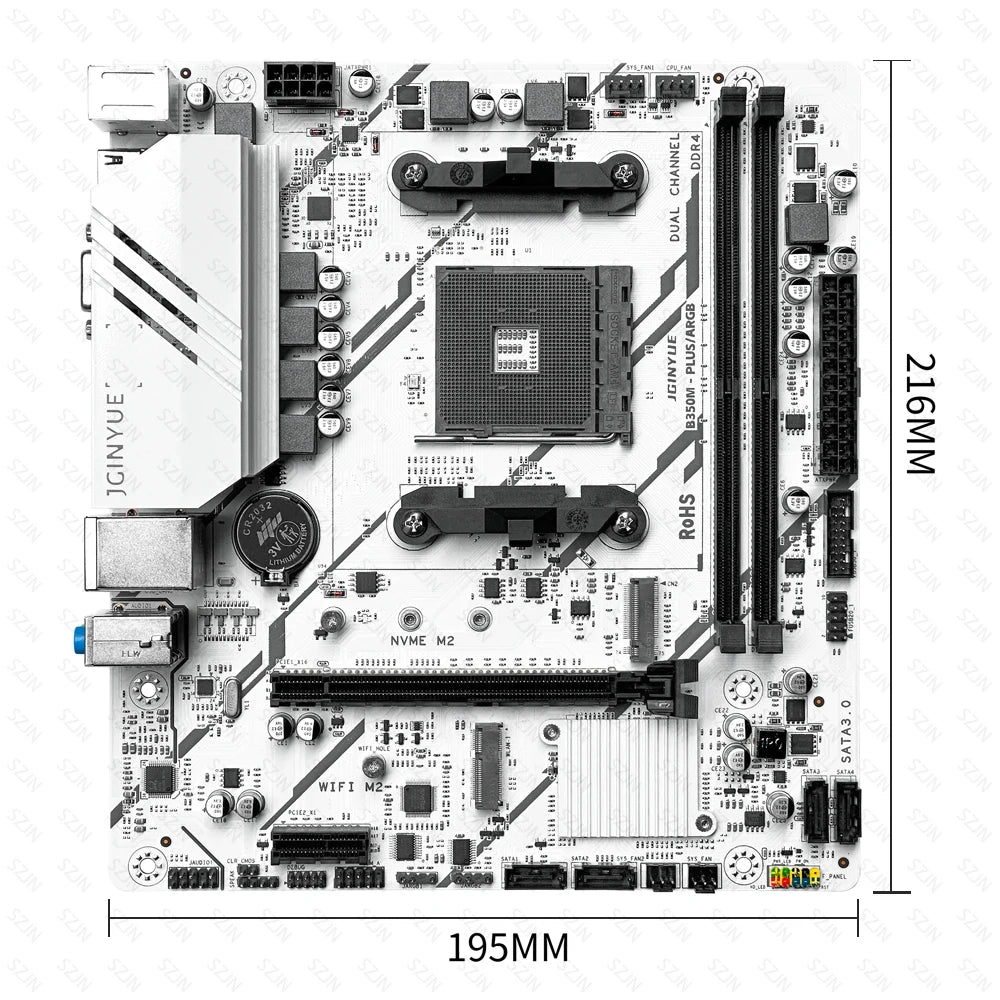

Form Factor: CeB,Mini-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 4

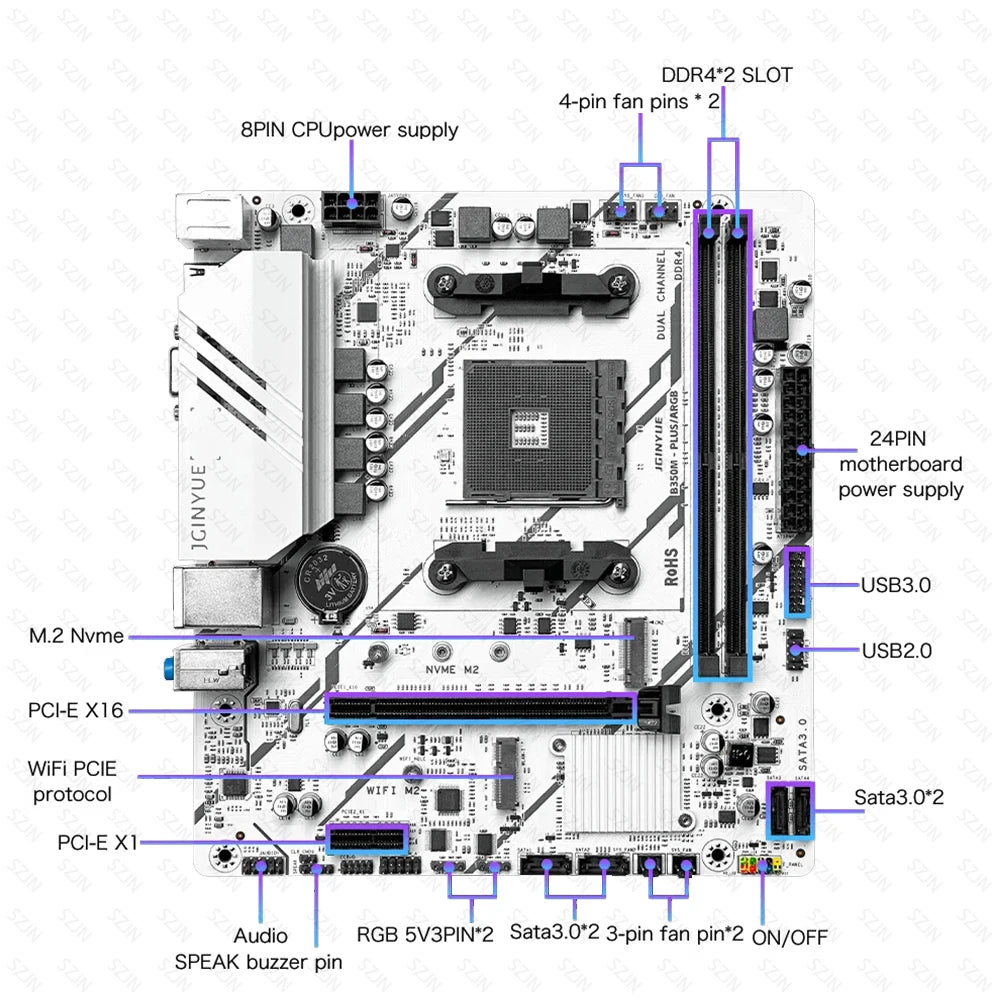

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: None

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R9,AMD Ryzen 5000 Series-R9,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3,AMD Ryzen 4000 Series-R9

Quality Certification: None

RAID Supported: No

Socket Type: AM4

Special Features: RGB

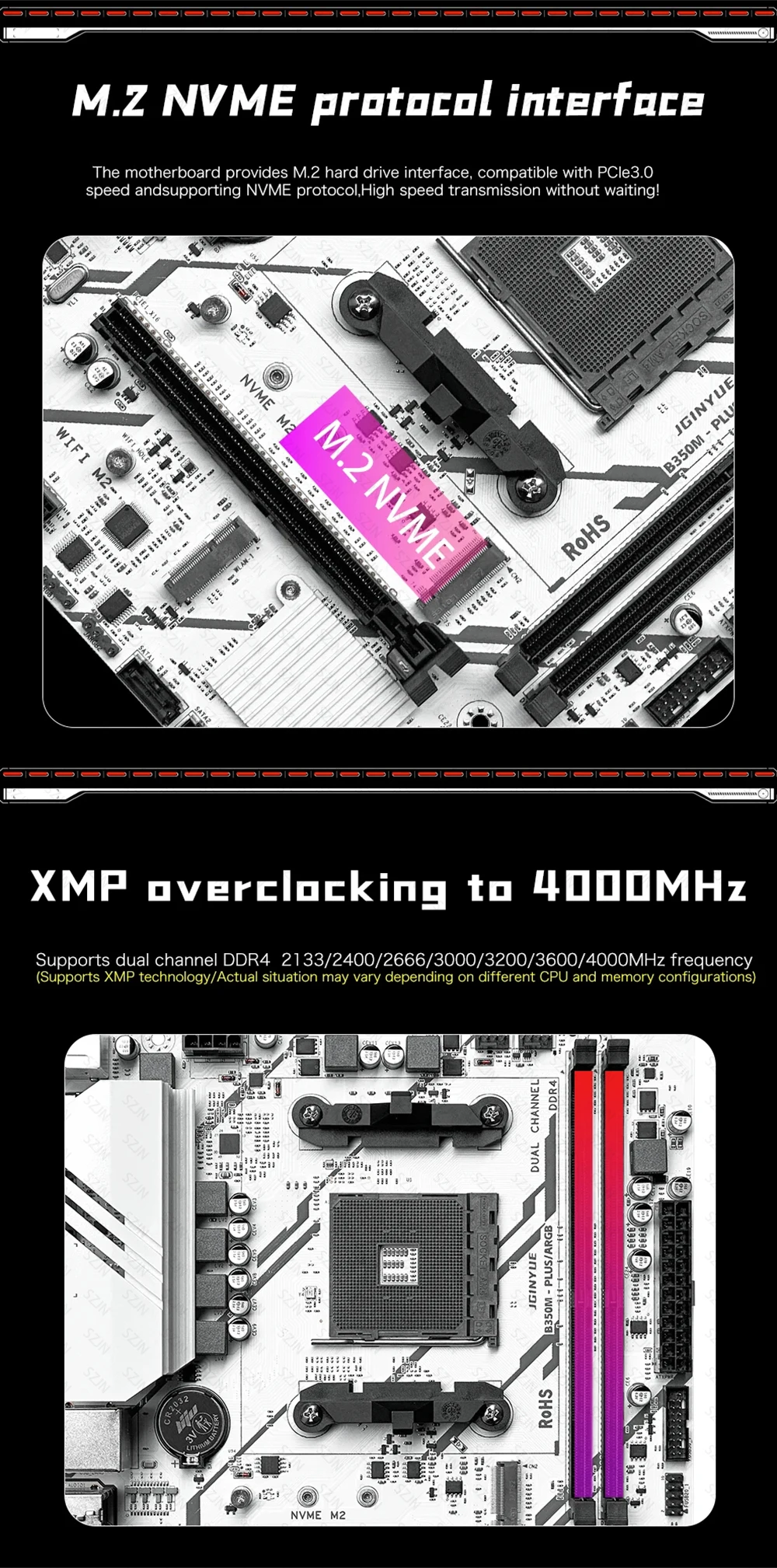

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Household,Office

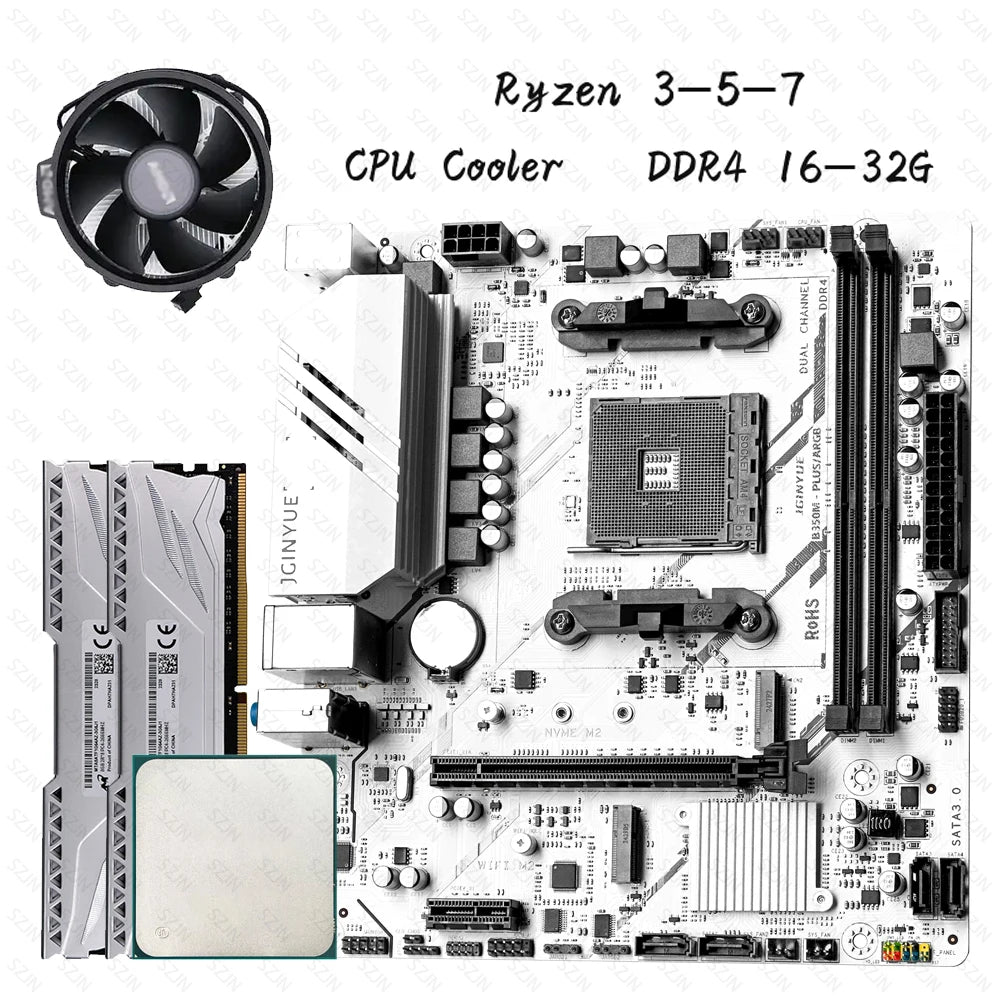

With CPU: Yes
